Replacing web sockets with Livewire

Original – by Freek Van der Herten – 11 minute read

Up until a few days ago, the real-time UI of Oh Dear (an uptime monitoring SaaS I run) was powered with web sockets. We recently replaced this with Livewire components.

In this blog post, I'd like to explain why and how we did that.

I'm going to assume that you already know what Livewire is. If not, head over to the Livewire docs. There's even a short video course on there. In short, Livewire enables you to create dynamic UIs using server-rendered partials.

Why ditch web sockets

There are hundreds of uptime checking services, but most of them look pretty crappy. When my buddy Mattias and I created Oh Dear, we set out the goal to create a beautiful service that is easy to use. We believe that our service doesn't necessarily has to be unique. By providing a good design, UX, and docs, you can get ahead of a large part of the competition.

One of the things we decided on very early on was that our UI needed to be real-time. We don't want users to refresh to see the latest results of their checks. When a new user adds their first site to our service, we wanted the whole process to be snappy and display results fast.

This is what that looks like in Oh Dear. After signing up, users can fill out this form. When pressing enter, it gets added to the list, and results are immediately displayed as they come in.

This behavior used to be powered by web sockets. Whenever Oh Dear started and completed a check, it would broadcast events to the front end. The broadcasting itself would be done using Laravel's native broadcasting features and the Laravel WebSockets package that Marcel and I created. On the front end, we used Laravel Echo to receive the events and a couple of Vue components.

It all worked fine, but it sure added some complexity to our stack. Also, most of the time, once users have set up their sites, they won't visit our website often again. But we'd still keep broadcasting events. We could avoid this by tracking presence in some way, but this would complicate things even further.

By moving to Livewire, we can ditch all of the things mentioned above entirely. There's no need for a web sockets server, Echo, and Vue to create the experience in the movie above. In fact, in that movie, Livewire is already being used.

Let's take a look at these Livewire components.

Displaying the list of sites

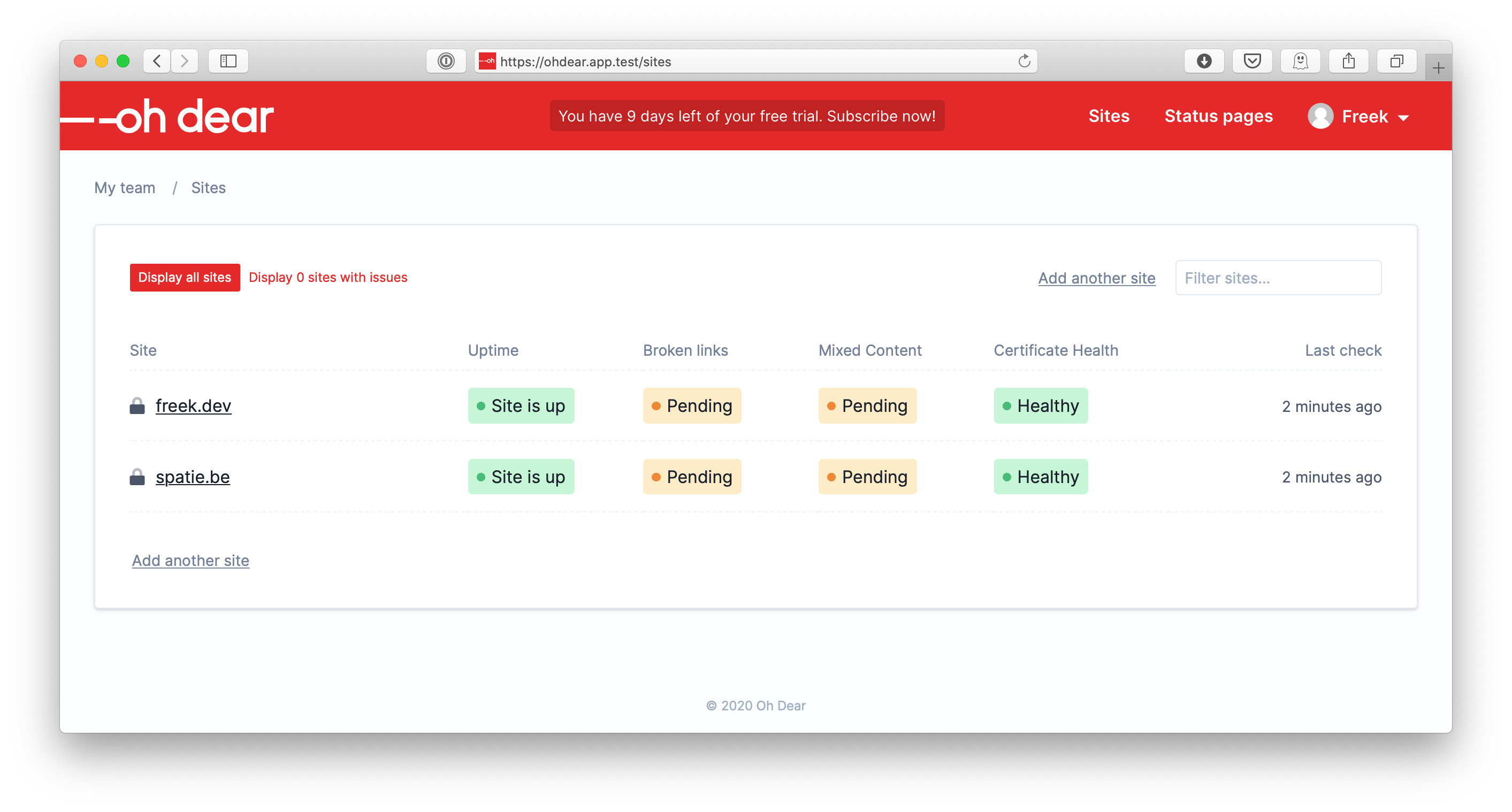

This is what the list of sites looks like.

screenshot of site list

Here is the Blade view that is used to render that screen.

<x-app-layout title="Dashboard" :breadcrumbs="Breadcrumbs::render('sites')">
    <div class="wrap">
        <section class="card pb-8 cloak-fade" v-cloak>
            @include('app.sites.list.partials.notificationsNotConfigured')

            <livewire:site-list />

            <div class="flex items-center mt-8" id="site-adder">
                <livewire:site-adder />
            </div>
        </section>
    </div>
</x-app-layout>

So we have two Livewire components going on: site-list and site-adder. In the LivewireServiceProvider you can see

namespace App\Providers;

use App\Http\App\Livewire\Sites\SiteListComponent;
use App\Http\App\Livewire\SiteSettings\SiteAdderComponent;
use Illuminate\Support\ServiceProvider;
use Livewire\Livewire;

class LivewireServiceProvider extends ServiceProvider
{
    public function boot()
    {
        Livewire::component('site-list', SiteListComponent::class);
        Livewire::component('site-adder', SiteAdderComponent::class);

        // other components
    }
}

Next, let's take a look at the SiteListComponent class and its underlying view. You don't have to understand it all now. After the source code, I'm going to explain some parts, but I think it's good that you already take a look at the component as a whole, so you have some context.

namespace App\Http\App\Livewire\Sites;

use Livewire\Component;
use Livewire\WithPagination;

class SiteListComponent extends Component
{
    use WithPagination;

    protected $listeners = ['siteAdded' => '$refresh'];

    public int $perPage = 30;

    public string $search = '';

    public bool $onlySitesWithIssues = false;

    public bool $showSiteAdder = false;

    public function showAll()
    {
        $this->search = '';

        $this->onlySitesWithIssues = false;
    }

    public function showOnlyWithIssues()
    {
        $this->search = '';

        $this->onlySitesWithIssues = true;
    }

    public function showSiteAdder()
    {
        $this->showSiteAdder = true;
    }

    public function hideSiteAdder()
    {
        $this->showSiteAdder = false;
    }

    public function render()
    {
        return view('app.sites.list.components.siteList', [
            'sites' => $this->sites(),
            'sitesWithIssuesCount' => $this->sitesWithIssuesCount(),
        ]);
    }

    protected function sites()
    {
        $query = currentTeam()->sites()->search($this->search);

        if ($this->onlySitesWithIssues) {
            $query = $query->hasIssues();
        }

        return $query
            ->orderByRaw('(SUBSTRING(url, LOCATE("://", url)))')
            ->paginate($this->perPage);
    }

    protected function sitesWithIssuesCount(): int
    {
        return currentTeam()->sites()->hasIssues()->count();
    }
}

And this is the content of the view that is being rendered in that render function: app.sites.list.components.siteList.

<div>
    <div wire:poll.5000ms>
        <section class="flex items-center justify-between w-full mb-8">
            <div class="text-xs">
                <div class="switcher">
                    <button wire:click="showAll"
                            class="switcher-button {{ ! $onlySitesWithIssues ? 'is-active' : '' }}">Display all sites
                    </button>
                    <button wire:click="showOnlyWithIssues"
                            class="switcher-button {{ $onlySitesWithIssues ? 'is-active' : '' }}">
                        Display {{ $sitesWithIssuesCount }} {{ \Illuminate\Support\Str::plural('site', $sitesWithIssuesCount) }} with issues
                    </button>
                </div>
            </div>

            <div class="flex items-center justify-end">
                <a href="#site-adder" wire:click="$emit('showSiteAdder')" class="button is-secondary mr-4">Add another site</a>
                <input wire:model="search"
                       class="form-input is-small w-48 focus:w-64"
                       type="text"
                       placeholder="Filter sites..."/>
            </div>
        </section>


        <table class="site-list-table w-full">
            <thead>
            <th style="width: 27%;">Site</th>
            <th style="width: 14%;">Uptime</th>
            <th style="width: 14%;">Broken links</th>
            <th style="width: 14%;">Mixed Content</th>
            <th style="width: 14%;">Certificate Health</th>
            <th style="width: 17%;">Last check</th>
            </thead>
            <tbody>
            @forelse($sites as $site)
                <tr>
                    <td class="pr-2">
                        <div class="flex">
                            <span class="w-6"><i
                                    class="fad text-gray-700 {{ $site->uses_https ? 'fa-lock' : '' }}"></i></span> <a
                                href="{{ route('site', $site) }}"
                                class="flex-1 underline truncate">{{ $site->label }}</a>
                        </div>
                    </td>
                    <td class="pr-2">
                        <x-check-result :site="$site" check-type="uptime"/>
                    </td>
                    <td class="pr-2">
                        <x-check-result :site="$site" check-type="broken_links"/>
                    </td>
                    <td class="pr-2">
                        <x-check-result :site="$site" check-type="mixed_content"/>
                    </td>
                    <td class="pr-2">
                        <x-check-result :site="$site" check-type="certificate_health"/>
                    </td>
                    <td class="text-sm text-gray-700">
                        @if($site->latest_run_date)
                            <a href="{{ route('site', $site) }}">
                                <time datetime="{{ $site->latest_run_date->format('Y-m-d H:i:s') }}"
                                      title="{{ $site->latest_run_date->format('Y-m-d H:i:s') }}">{{ $site->latest_run_date->diffInSeconds() < 60 ? 'Less than a minute ago' : $site->latest_run_date->diffForHumans() }}</time>
                            </a>
                        @else
                            No runs yet
                        @endif
                    </td>
                </tr>
            @empty
                <tr><td class="text-center" colspan="6">There are no sites that match your search...</td></tr>
            @endforelse
            </tbody>
        </table>

        @if ($sites->total() > $perPage)
            <div class="flex justify-between mt-4">
                <div class="flex-1 w-1/2 mt-4">
                    {{ $sites->links() }}
                </div>

                <div class="flex w-1/2 text-right text-muted text-sm text-gray-700 mt-4">
                    <div class="w-full block">
                        Showing {{ $sites->firstItem() }} to {{ $sites->lastItem() }} out of {{ $sites->total() }} sites
                    </div>
                </div>
            </div>
        @endif
    </div>
</div>

In the render function, you probably have noticed that the component itself is responsible for getting the sites.

public function render()
{
    return view('app.sites.list.components.siteList', [
        'sites' => $this->sites(),
        'sitesWithIssuesCount' => $this->sitesWithIssuesCount(),
    ]);
}

protected function sites()
{
    $query = currentTeam()->sites()->search($this->search);

    if ($this->onlySitesWithIssues) {
        $query = $query->hasIssues();
    }

    return $query
        ->orderByRaw('(SUBSTRING(url, LOCATE("://", url)))')
        ->paginate($this->perPage);
}

Filtering sites

Notice that $this->onlySitesWithIssues check? Let's see how that variable is being set. If you take a look at the screenshot of the site list, you'll notice a little filter on the top with "Display all sites" and "Display sites with issues".

This is the part of the view that renders that.

<div class="switcher">
    <button wire:click="showAll"
            class="switcher-button {{ ! $onlySitesWithIssues ? 'is-active' : '' }}">Display all sites
    </button>
    <button wire:click="showOnlyWithIssues"
            class="switcher-button {{ $onlySitesWithIssues ? 'is-active' : '' }}">
        Display {{ $sitesWithIssuesCount }} {{ \Illuminate\Support\Str::plural('site', $sitesWithIssuesCount) }} with issues
    </button>
</div>

Notice that wire:click="showOnlyWithIssues". When the user clicks an element with wire:click the method whose name is in the attribute value will be executed, and the component will be re-rendered. So, in this case, showOnlyWithIssues is executed.

public function showOnlyWithIssues()
{
    $this->search = '';

    return $this->onlySitesWithIssues = true;
}

So, here our onlySitesWithIssues instance variable is changed, causing our component to re-render. Because onlySitesWithIssues is now set to true, the sites() method will now filter on sites having issues.

if ($this->onlySitesWithIssues) {
    $query = $query->hasIssues();
}

When the component gets rendered, only sites with issues are displayed. Under the hood, Livewire takes care of a lot of things, most notably calling the method on the component when that wire:click element is called, and replacing the HTML of the component on the page when the HTML of the re-rendered version.

Searching sites

In the top right corner of the site list, you see a search box. When you type something there, you will only see sites who's name contain your query. Here's how that works.

In the Blade view, this is the relevant HTML.

<input
   wire:model="search"
   class="form-input is-small w-48 focus:w-64"
   type="text"
   placeholder="Filter sites..."
/>

Here, another Livewire directive is used: wire:model. This directive will make sure that each time you type something in that element, Livewire will update the instance variable with the same name in the component and re-render the component. By default, this behavior is debounced, meaning that when you type fast, only one request will be made every 150ms.

So, because the search instance variable is changed on the component, it will re-render. In the first line of the sites() method, the value is being used.

$query = currentTeam()->sites()->search($this->search);

And with this in place, searching sites works. I think it's kinda amazing that you can have this behavior by merely adding livewire:model in your view, and using that value to scope your query. Sure, you could do this with Vue, but this is way simpler.

For completeness, here's the scopeSearch that's on the Site model.

public static function scopeSearch(Builder $query, string $searchFor): void
{
    if ($query === '') {
        return;
    }

    $query->where('url', 'like', "%{$searchFor}%");
}

Paginating sites

Laravel natively has excellent support for paginating query results. You only have to call paginate on your query, which we have done in the sites() method.

// in the sites() method

return $query
    ->orderByRaw('(SUBSTRING(url, LOCATE("://", url)))')
    ->paginate($this->perPage);

Calling $sites->links() in the view will render URLs with a page parameter. Under the hood of the paginate() method, that query parameter is used to fetch the results of that page. That's in short how pagination works in Laravel.

Adding pagination support to a Livewire component is super easy with Livewire. You just have to use the Livewire\WithPagination trait on your component. This trait does some magic so the render links don't contain a URL to your page, but to an internal Livewire route. This is the output of $sites()->links() in the view of Livewire component.

<ul>
    <li class="page-item active" aria-current="page"><span class="page-link">1</span></li>
    <li class="page-item"><a class="page-link" href="https://ohdear.app/livewire/message/site-list?page=2">2</a></li>
    <li class="page-item"><a class="page-link" href="https://ohdear.app/livewire/message/site-list?page=3">3</a></li>
    <li class="page-item"><a class="page-link" href="https://ohdear.app/livewire/message/site-list?page=4">4</a></li>

    <li class="page-item">
        <a class="page-link" href="https://ohdear.app/livewire/message/site-list?page=2" rel="next" aria-label="Next »"></a>
    </li>
</ul>

When clicking such a link, Livewire will set the page query parameter in the URL and re-render the component. It's an elegant solution, and I like that it hooks in so nicely with Laravel's default pagination.

As a Livewire user, the only thing you needed to do extra was to apply that WithPagination trait. Beautiful.

Updating the list

As stated earlier, want to have our UI to display the current state, without users having to refresh. If one of the sites displayed in the list goes down, the list should get updated automatically.

The solution for this is straightforward: we're just going to poll for changes. Livewire comes with support for polling out of the box. At the top of the view you might have noticed this:

<div wire:poll.5000ms>

This will make Livewire refresh the component automatically every five seconds. To re-render the component in the browser, Livewire makes use of morphdom. This will compare the HTML of the component with the HTML of the re-rendered version. Only the changes will get updated in the DOM, making the cost for re-rendering in the browser very low.

While typing this blog post, I can already feel the screams of some readers: "Freek, what are you doing!?!? This is highly inefficient: it will perform queries and make requests the whole time...". And yes, that is true.

Using Livewire with polling is a trade-off. One the one hand, we have some more requests/queries, but this only happens when users are looking at their site lists. This won't happen often. To know the state of their sites, the vast majority of our users rely on the alerts we sent out (via Slack, Mail, Telegram, ...), and they won't be staring at the site list the whole time.

It's also very nice that Livewire only polls if the browser is displaying the page. When a browser tab is in the background, polling is paused.

By using a little bit of polling, we don't need to set up web sockets or Vue, and we don't need to broadcast events the whole time, ... It vastly simplifies our tech stack. I think in this case, the trade-off that Livewire / polling brings to the table is worth it.

In closing

I hope you enjoyed this dissection of our site list Livewire component. Other place in our UI, where realtime info is being displayed, was refactored in a similar fashion.

Working with Livewire was a pleasure. The API makes sense, the docs are well written, and it's easy to create powerful components in a short amount of time.

If you want to see the Livewire components discussed in this blogpost in action, head over to Oh Dear and start your ten-day trial (no credit card needed).

After ten days, you might want to get a subscription. What sets Oh Dear apart from the competition is that we not only monitor your homepage, but your entire site. We can alert you when a broken link, or mixed content, is found on any pages of your website. And we also monitor certificate health and provide beautiful status pages like this one.

Should you have questions about these Livewire components, or Oh Dear in general, let me know in the comments below.

Stay up to date with all things Laravel, PHP, and JavaScript.

Follow me on Twitter. I regularly tweet out programming tips, and what I myself have learned in ongoing projects.

Every two weeks I send out a newsletter containing lots of interesting stuff for the modern PHP developer.

Expect quick tips & tricks, interesting tutorials, opinions and packages. Because I work with Laravel every day there is an emphasis on that framework.

Rest assured that I will only use your email address to send you the newsletter and will not use it for any other purposes.

Comments

Webmentions

TALLtuts liked on 16th July 2020
Diar liked on 16th July 2020
Martin Medina liked on 16th July 2020
Coderatio liked on 16th July 2020
Maaz Ali liked on 16th July 2020
ali ali liked on 16th July 2020
Stefan Tanevski liked on 16th July 2020
Pavlo Bezdverniy liked on 16th July 2020
Stephen Shead liked on 16th July 2020
Brandon Surowiec retweeted on 15th July 2020
AndreBoyle liked on 15th July 2020
Jamie Shiers liked on 15th July 2020
Angel Rushkov liked on 15th July 2020
Сута Фунду retweeted on 15th July 2020
Shawn Hooper retweeted on 15th July 2020
🤔🤔🤔 rick retweeted on 15th July 2020
Maxime liked on 15th July 2020
🤔🤔🤔 rick liked on 15th July 2020
Niels liked on 15th July 2020
Mudassir Ahmad Adili liked on 15th July 2020
DeanLJ liked on 15th July 2020
Owen Voke liked on 15th July 2020
Rich Klein liked on 15th July 2020
Joan Morell liked on 15th July 2020
Сута Фунду liked on 15th July 2020
Bart Joris liked on 15th July 2020
Noe liked on 15th July 2020
Flamur Mavraj liked on 15th July 2020
François liked on 15th July 2020
Oh Dear retweeted on 15th July 2020
Mattias Geniar retweeted on 15th July 2020
Hardik Shah liked on 15th July 2020
flowdee ツ liked on 15th July 2020
Jerrell Niu liked on 15th July 2020
Kennedy Tedesco liked on 15th July 2020
Silvan Hagen 🍀 liked on 15th July 2020
Bill Richards liked on 15th July 2020
Richard liked on 15th July 2020
Wyatt liked on 15th July 2020
José Cage liked on 15th April 2020
Eric B liked on 14th April 2020
kapil retweeted on 14th April 2020
Gregorio Hernández Caso liked on 14th April 2020
Willan Correia liked on 14th April 2020
Franciisco Campos 🇦🇴 liked on 14th April 2020
Chris White liked on 14th April 2020
Tyler Woonton liked on 14th April 2020
Bo replied on 14th April 2020
Does your website repo have to be public to use this for commentrs/
Musa  liked on 14th April 2020
Leonel Elimpe liked on 14th April 2020
Lennart Fischer liked on 14th April 2020
Matthieu Napoli liked on 14th April 2020
BongoBongo retweeted on 14th April 2020
Suraj Jadhav retweeted on 14th April 2020
Cameron Scott liked on 14th April 2020
Samy liked on 14th April 2020
Mark Topper liked on 14th April 2020
Baki Goxhaj liked on 14th April 2020
Craig McCreath liked on 14th April 2020
BongoBongo liked on 14th April 2020
Suraj Jadhav liked on 14th April 2020
Martin Medina liked on 14th April 2020
Alan Scott‽ liked on 13th April 2020
Stefan Zweifel liked on 13th April 2020
Daniel Schmitz liked on 12th April 2020
Dumitru Botezatu liked on 12th April 2020
Christian Klemp liked on 12th April 2020
Erick Patrick liked on 12th April 2020
Maarten liked on 11th April 2020
Mark Myers liked on 11th April 2020
Pampa [ 💛 💚 ] liked on 11th April 2020
Pampa [💛💚] retweeted on 11th April 2020
Chumang liked on 11th April 2020
danidanz 🥑 liked on 11th April 2020
Gaurav Makhecha replied on 11th April 2020
3/ @freekmurze shares how they replaced Websockets with Laravel Livewire for real-time page updates on @ohdear PS - It is polling 🕸️ but leaves you at a better place ultimately. twitter.com/freekmurze/sta…
이현석 Hyunseok Lee liked on 11th April 2020
Malik Krehic liked on 11th April 2020
Matthijs Huisman replied on 11th April 2020
Thx for this! Was already thinking about using vue on monday for doing something like this, looks like I’ll be using LiveWire now 🎉
Mattia Migliorini liked on 11th April 2020
Barna Szalai retweeted on 11th April 2020
Barna Szalai liked on 11th April 2020
Milan Chheda 👨‍💻 liked on 11th April 2020
Andrew Clinton liked on 11th April 2020
Andrew Clinton retweeted on 11th April 2020
Michael Dyrynda replied on 11th April 2020
I’m convinced.
Michael Dyrynda liked on 11th April 2020
Matthew Yates liked on 10th April 2020
José Cage liked on 10th April 2020
Musa  liked on 10th April 2020
Honby liked on 10th April 2020
Tyler Woonton liked on 10th April 2020
Owen Andrews liked on 10th April 2020
Franck retweeted on 10th April 2020
Franck liked on 10th April 2020
Maxime liked on 10th April 2020
maatwebsite liked on 10th April 2020
Lazarus liked on 10th April 2020
maatwebsite replied on 10th April 2020
Nice approach 👌
Rodrigo Castro liked on 10th April 2020
Brandon Surowiec retweeted on 10th April 2020
Caleb Porzio retweeted on 10th April 2020
Caleb Porzio liked on 10th April 2020
Adib Hanna retweeted on 10th April 2020
Adib Hanna liked on 10th April 2020
Tommy liked on 10th April 2020
Mozammil liked on 10th April 2020
Placebo Domingo retweeted on 10th April 2020
vluzrmos liked on 10th April 2020
Bezhan Salleh retweeted on 10th April 2020
86bits /webdev liked on 10th April 2020
Alejandro Vásquez N. liked on 10th April 2020
Hardik Shah liked on 10th April 2020
Mike Vosters liked on 10th April 2020
Pedro 🌠 liked on 10th April 2020
Javier Díaz ⚛️ 👽 liked on 10th April 2020
Bezhan Salleh liked on 10th April 2020
86bits /webdev replied on 10th April 2020
why try livewire? - "(...) they (users) won't visit our website often again. But we'd still keep broadcasting events" Perfect for this scenario, when you dont have to broadcast all the time, only when user is on.
Richard liked on 10th April 2020
Felipe Dalcin liked on 10th April 2020
Neil Keena liked on 10th April 2020
Neil Keena replied on 10th April 2020
Thanks for sharing! I always like to see how you guys solve problems and which tech stacks you choose to reach for
Alexander liked on 10th April 2020
Thibault Lavoisey liked on 10th April 2020
Nuno Souto liked on 10th April 2020
George Drakakis 🖖 liked on 10th April 2020
Tom Irons liked on 10th April 2020
Sadegh PM liked on 10th April 2020
Sergio Bruder replied on 10th April 2020
If I understood corretly: You went with a way simpler setup that switched from a far superior push config with wesocket to an Ajax polling mechanism with Livewire. Certainly simpler but with less scalability in the end.
hjtshort retweeted on 10th April 2020
Khai Rahman retweeted on 10th April 2020
نبيل الالمعي liked on 10th April 2020
Mattias Geniar liked on 10th April 2020
Ruslan liked on 10th April 2020
Alexander von Studnitz liked on 10th April 2020
Tom Van Looy liked on 10th April 2020
(((PabloColazurdo))) liked on 10th April 2020
Josh Larson liked on 10th April 2020
Travis Elkins liked on 10th April 2020
Khai Rahman liked on 10th April 2020
Lawrence Enehizena liked on 10th April 2020
Jesús Espejo liked on 10th April 2020
Oh Dear! retweeted on 10th April 2020
Tony Messias retweeted on 10th April 2020
Ahmed Helal Ahmed retweeted on 10th April 2020
Ahmed Abd El Ftah retweeted on 10th April 2020
Brian Faust retweeted on 10th April 2020
Parthasarathi G K liked on 10th April 2020
Jason Frye liked on 10th April 2020
Craig Lovelock liked on 10th April 2020
GrandBlond 🇨🇿 liked on 10th April 2020
Wyatt liked on 10th April 2020
James Smith liked on 10th April 2020
Alan Rezende liked on 10th April 2020
Flip.hr liked on 10th April 2020
Tony Messias liked on 10th April 2020
Rolando Rojas liked on 10th April 2020
. liked on 10th April 2020
Ahmed Abd El Ftah liked on 10th April 2020
Ken V. liked on 10th April 2020
Jorick de Lange liked on 10th April 2020
Meabed liked on 10th April 2020
Yunus Emre Deligöz liked on 10th April 2020
Ahmed Helal Ahmed liked on 10th April 2020
Alan Rezende replied on 10th April 2020
I was waiting for this post
